2.2KW CNC Spindle Motor ER20 Round 80mm Diameter ER20 Chuck(2.2kw 220V ER20)
Product details
| Management number | 210271400 | Release Date | 2026/04/02 | List Price | $270.82 | Model Number | 210271400 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

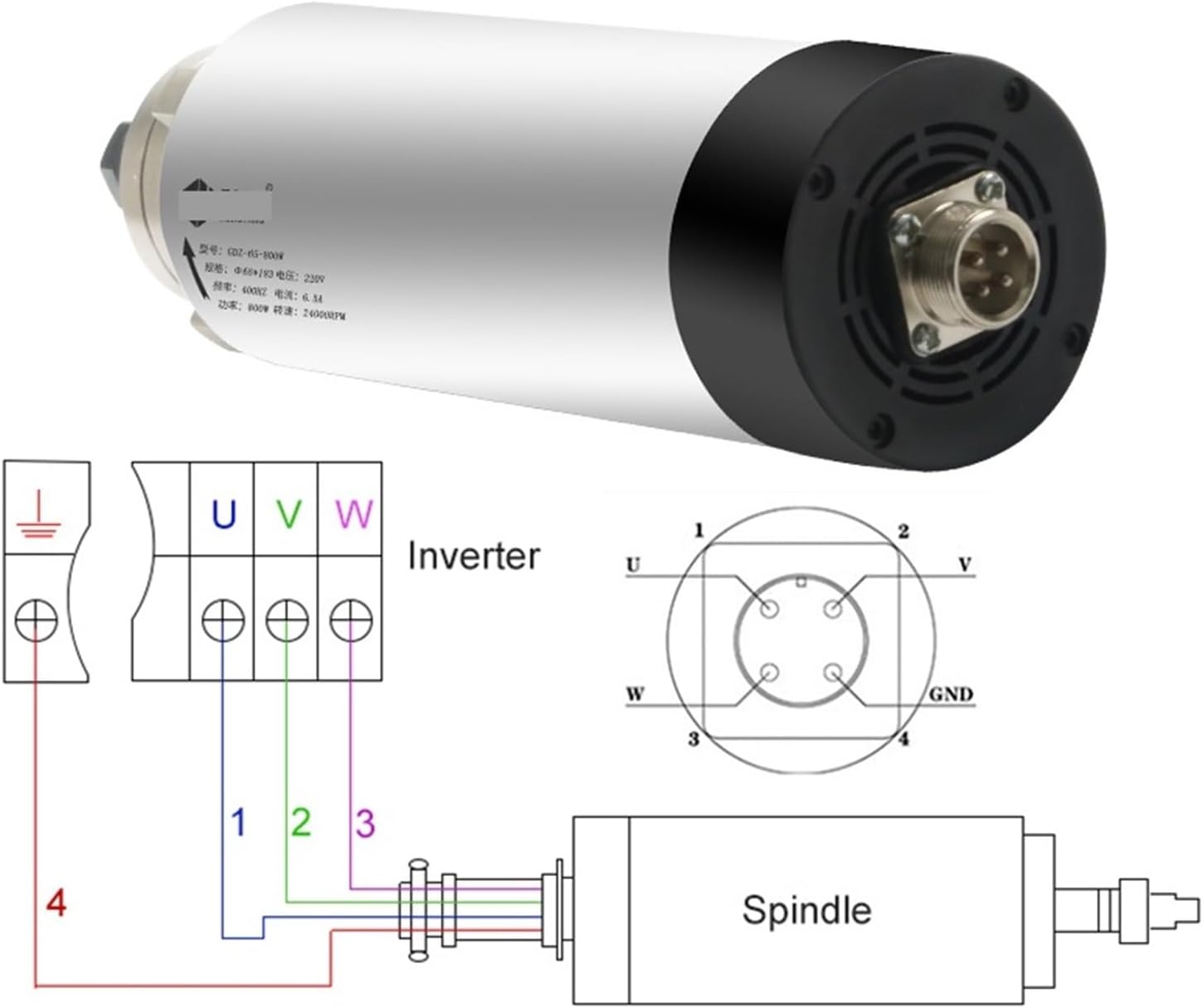

MandrelsSize: 80mm round air-cooledSpeed regulation mode: The spindle speed can be changed by a three-phase output inverter and the frequency of the inverter can be adjusted.Cooling method: air coolingPower interface: Optional 4-pin aviation plug.The air plugs are labeled "1", "2", "3", and "4". "1", "2", and "3" are connected to the inverter (U, V, W), and 4 is connected to the inverter.Equipment grounding.Power: 2.2KWVoltage: 220V 380VCurrent: 6.0AFrequency: 0-400 HzSpeed: 0-24000 RPMRunout: less than 0.01mmDiameter(mm):65mm4 fully sealed angular contact bearingsChuck: ER20Clamp diameter: 13mm, 12.7mm, 12mm, 11mm, 10mm, 9mm, 8mm, 7mm, 6.35mm, 6mm, 5mm, 4mm, 3.175mm, 3mm, 2.5mm, 2mm, 1.5mm, 1mm (standard 6mm)Water-cooled ER20 chuck
- Mandrels
| Department | unisex-adult |
|---|---|
| Item Weight | 4.2 ounces |
| Manufacturer | IPDBLBYL |
| Number of pieces | 1 |
| Assembly required | No |
| Item model number | IPDBLBYL |
| Package Dimensions | 4.33 x 4.33 x 4.33 inches |
