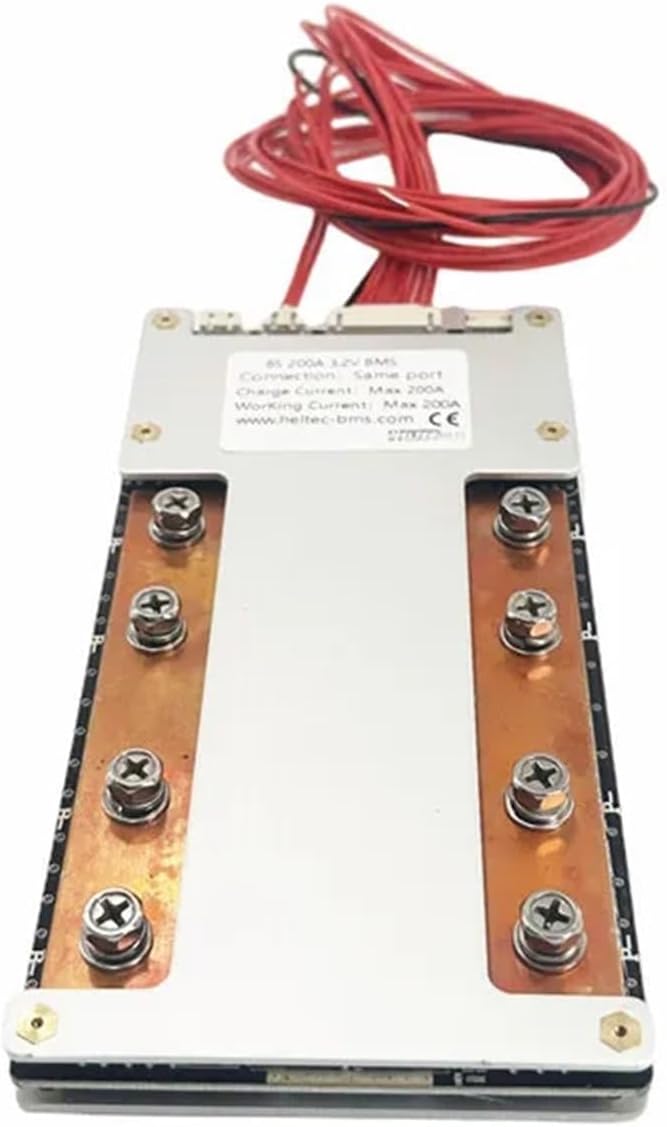

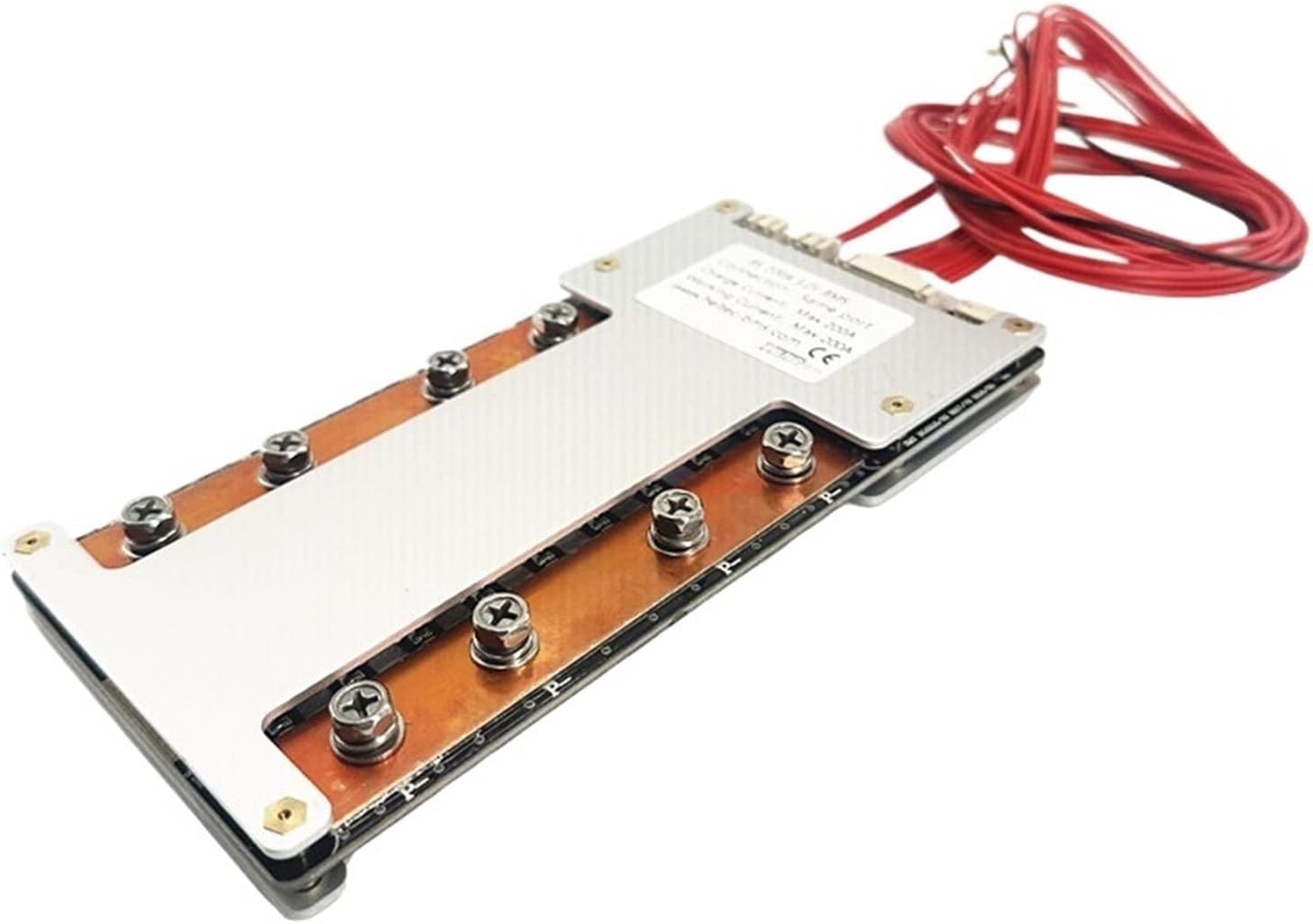

24V inverter 3000W 7S BMS 200A 3.7V Li-ion Battery Protection Board for inverter 3000W(7S 200A 3.7V Same)

Circuit Boards7S 200A 3.7V Same PortCharge protection voltage: 4.28VCharge protection release voltage: 4.08VDischarge protection voltage: 2.8VDischarge release voltage 3.0VBalanced voltage: 4.17VBalanced current: 83MAMaximum continuous overcurrent: 200ACurrent limit protection: 750AShort circuit protection: load short circuit protectionSize: 163*82 * 14MMCommonly used: 3000W inverter, etc.Suggest to connect with the 5/10000 5/10000 real-time translation, copper nose Copper nose6S 7S 8S 5A Active BalancerWorking voltage: 1.8V-4.5VSuitable for ternary lithium, lithium iron phosphate, lithium titanate.Working principle, the capacitor fit transfers the charge mover, the equalization board is connected to the battery, and the equalization is started. The ultra-low internal resistance MOS, 2OZ copper thickness PCBEquilibrium current 0-5.5A, the more balanced the battery, the smaller the current, with manual sleep switch, sleep current mode is less than 0.1mA, the balance voltage accuracy is within 5mv!The quiescent current is about 12 mA. It is recommended that the battery capacity is 60-300AH.With under-voltage sleep protection, the voltage will stop automatically when the voltage is lower than 3.0V, and the standby power consumption is less than 0.1mA.LTO Only means that this edition is only applicable to lithium titanate. The indication without LTO applies to ternary lithium and lithium iron phosphate.for all means suitable for ternary lithium, lithium iron phosphate, lithium titanate
