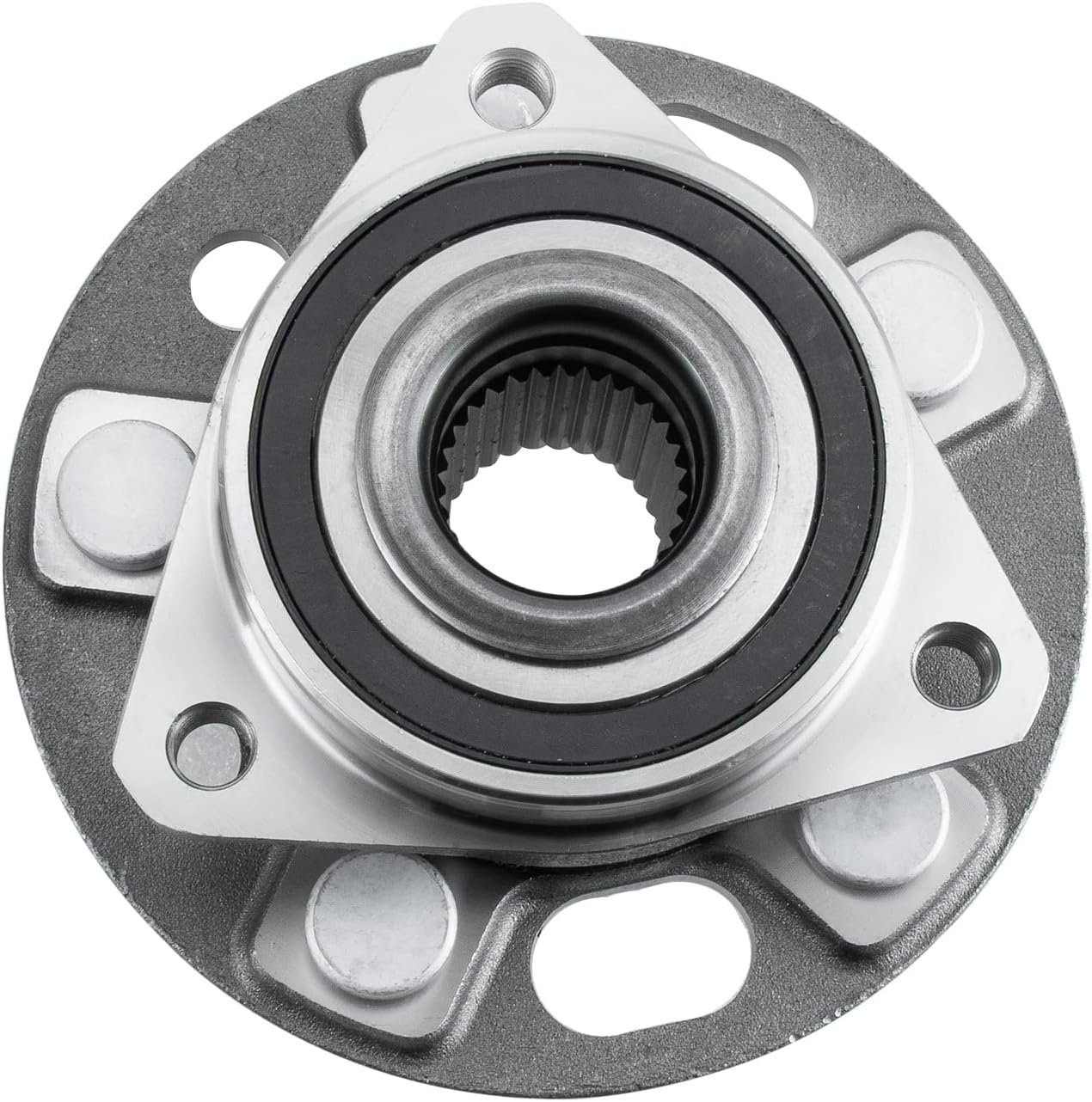

513288 Front or Rear Wheel Hub Bearings for Chevy Equinox Impala GMC Terrain Regal 5 Lugs

This Wheel Hub Bearing Assembly Compatible With: Compatible With Chevy Malibu 2013 - 2015 Front And Rear All Models Compatible With Chevy Malibu Limited 2016 Front And Rear All Models Compatible With Buick Allure 2010 Only Rear Compatible With Buick Regal 2011 - 2017 Front And Rear All Models Compatible With Cadillac XTS 2013 - 2016 Front And Rear All Models Compatible With Cadillac XTS 2017 Front And Rear All Models Compatible With Except Brake Code J55 Compatible With Buick Lacrosse 2010 - 2016 Front And Rear All Models Compatible With Chevy Impala 2014 - 2017 Front And Rear All Models Compatible With Cadillac CTS 2014 - 2016 Front For Awd Only Compatible With Chevy Equinox 2010 - 2017 Front For All Models Compatible With GMC Terrain 2010 - 2017 Front For All Models Compatible With Saab 9-5 2010 - 2011 Front And Rear All Models OE/OEM Part Number: 513288 Configuration: Type: Wheel Hub & Bearing Assembly Placement on Vehicle: Front, Left, Rear, Right Wheel Pilot Diameter:2.63 in. / 66.9 mm Wheel Lug Quantity:5 Type:Ball Bearing Surface Finish:Polished, Rust Protected Material:Steel Lugs Included:Yes Knuckle Bolt Hole Size:M12*1.75 Knuckle Bolt Circle Diameter:4.17 in. / 106 mm Items Included:N/A ISO Specification:ISO 16949 Inside Spline Quantity:30 Hub Pilot Diameter:3.59 in. / 91.2 mm Hardware Included:No Flange Shape:Triangle Flange Offset:1.65 in. / 42 mm Flange Diameter:6.18 in. / 157 mm Flange Bolt Hole Quantity:3 Fitment Type:direct replacement Brake Pilot Diameter:2.65 in. / 67.3 mm Bolt Thread Pitch:M14*1.5 Bolt Size:M14*1.5 Bolt Pattern:5 x 4.72 in. Bolt Circle Diameter:4.72 in. / 120 mm ABS Sensor Included:No Performance: Rolling technolog Light weight miniaturization Low friction moment 100% Factory tested Manufactured to meet or exceed expectations for performance and fit High Performance Seal Ring Design Ensures a Clean, Long Lasting HUB bearing ABS Technology,Sensors Designed to Match Specific Make And Model Pls use AmazonConfirmedFit to confirm this Wheel Hub Bearings fit your vehicle before you order Pls double compare pics and specs of this item with your stock Wheel Hub Bearings to avoid ordering wrong 12 month warranty on all KUUHLERSAT parts If you have any question or need any help from us, please feel free to contact us, we are willing to solve all problems for you

• 513288 Front or Rear Wheel Hub and Bearing Assembly
• Wheel Pilot Diameter:2.63 in. / 66.9 mm
• Knuckle Bolt Circle Diameter:4.17 in. / 106 mm
• Hub Pilot Diameter:3.59 in. / 91.2 mm
• Flange Offset:1.65 in. / 42 mm
• Flange Diameter:6.18 in. / 157 mm
• Brake Pilot Diameter:2.65 in. / 67.3 mm
• Bolt Thread Pitch:M14*1.5
• Bolt Circle Diameter:4.72 in. / 120 mm
