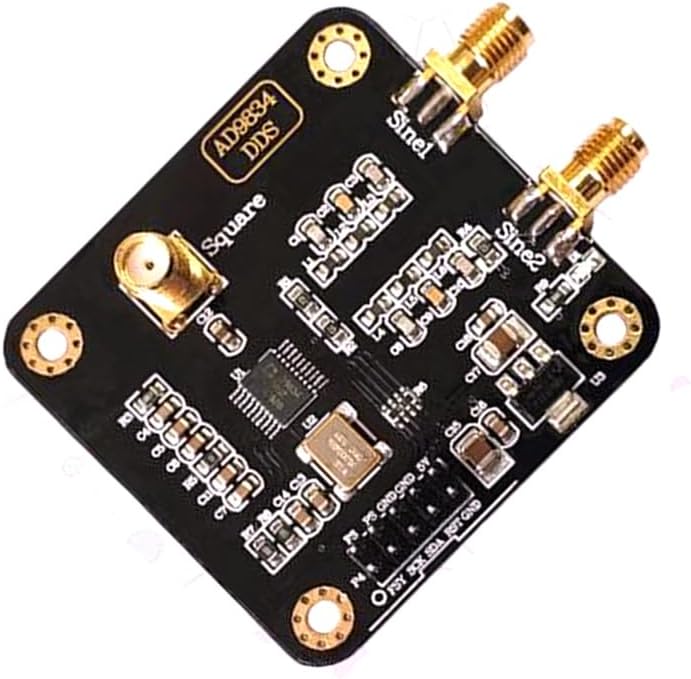

AD9834 Signal Generator Sinusoidal Triangular Square Wave Signal Module DDS with Drive Board
Product details
| Management number | 220424823 | Release Date | 2026/05/03 | List Price | $48.56 | Model Number | 220424823 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specifications: Module model: AD9834 Module type: digital synthesis frequency source Module power supply: DC 5V Module current: 20mA (MAX) Normal driving current 15mA (TYP) Module communication protocol: STM32F103RCT6 Routine platform: STM32F103X-M3 Module system main frequency: 75MHz (MAX) DAC rate bits: 10 Number of bits for phase accumulator: 28 Module output interface: SMA Module output signals: sine wave, square wave, triangular wave Module output channel: 2-channel differential Maximum main frequency output sine wave signal range: 1Hz-30MHz Maximum main frequency output square wave signal range: 1Hz-10MHz Output amplitude: sine wave 530mVpp (MAX) square wave 3.3Vpp Output impedance: 200 ohms Module size: 50x50x13.6mm Packaging: 1x AD9834 digital synthetic frequency source
- Module model: AD9834
- Module power supply: DC 5V
- Module current: 20mA (MAX) Normal driving current 15mA (TYP)
- Module system main frequency: 75MHz (MAX)
- Maximum main frequency output sine wave signal range: 1Hz-30MHz
| Item Weight | 1.1 pounds |
|---|---|
| Manufacturer | Q-BAIHE |
