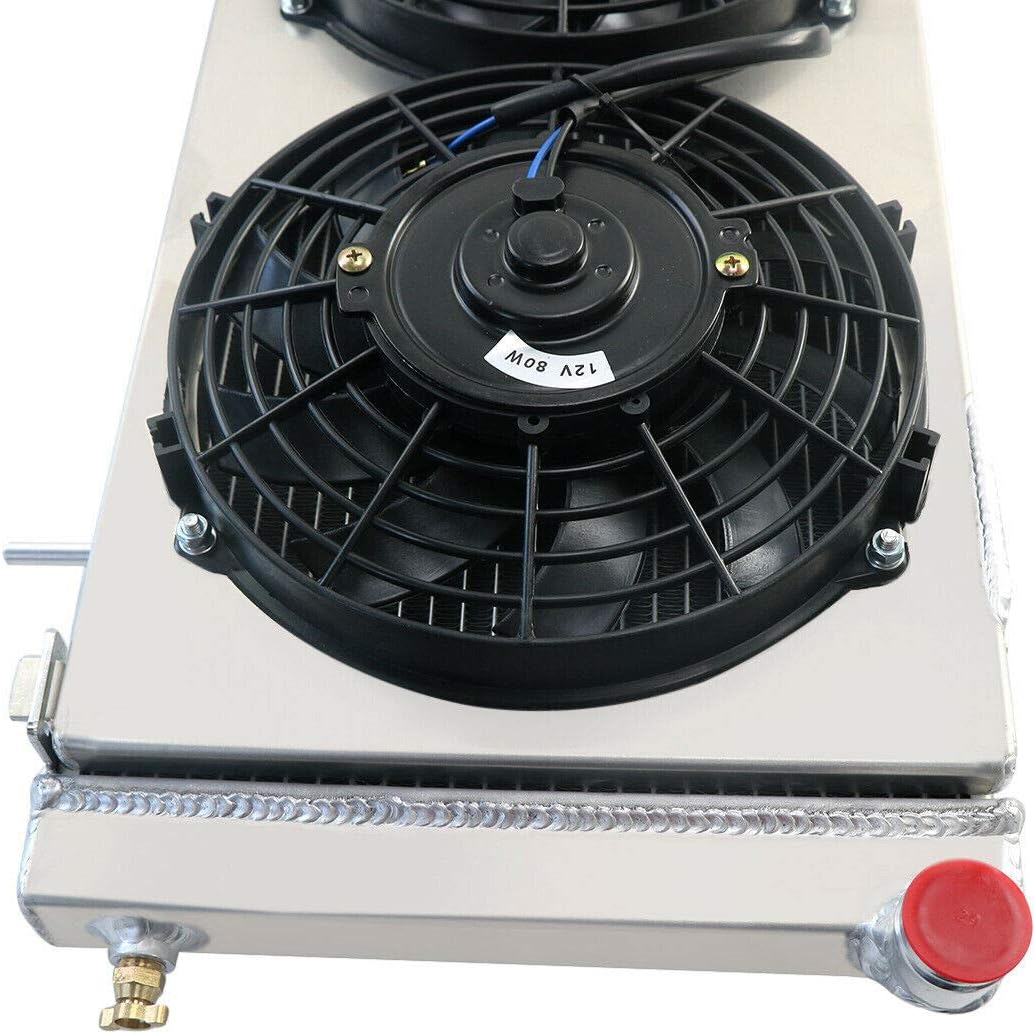

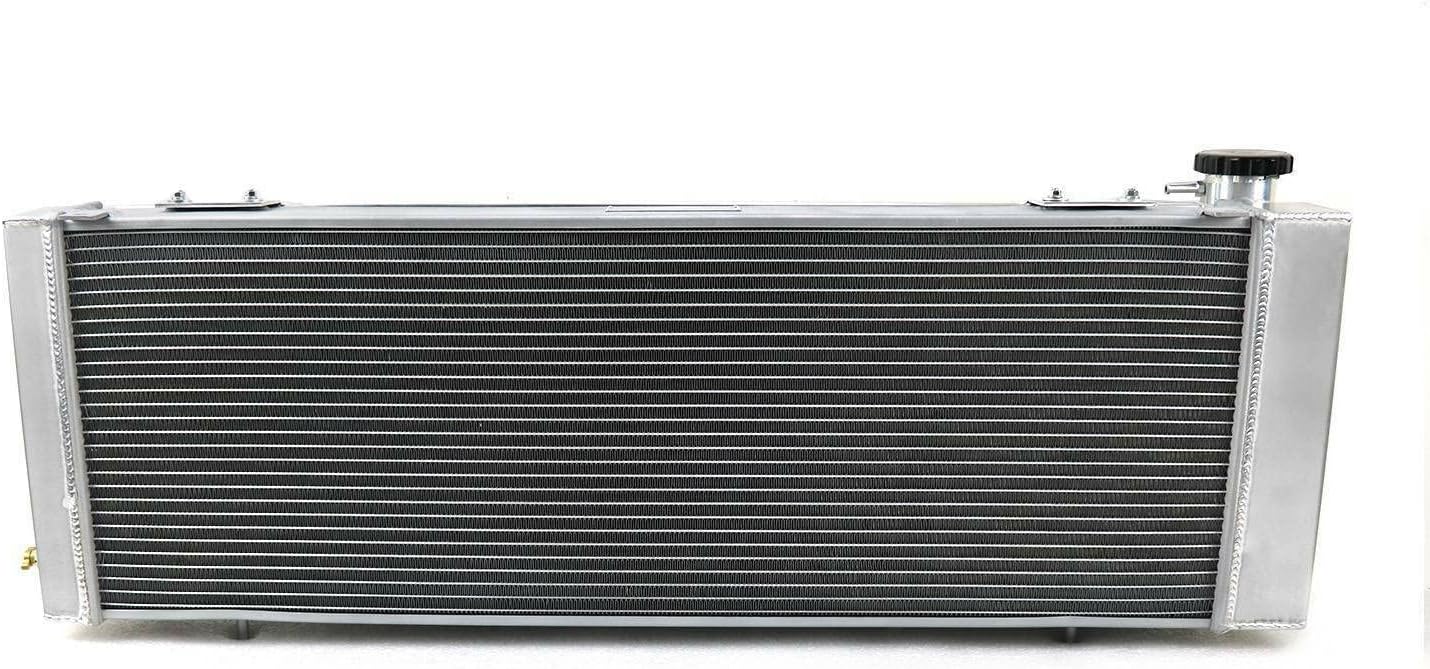

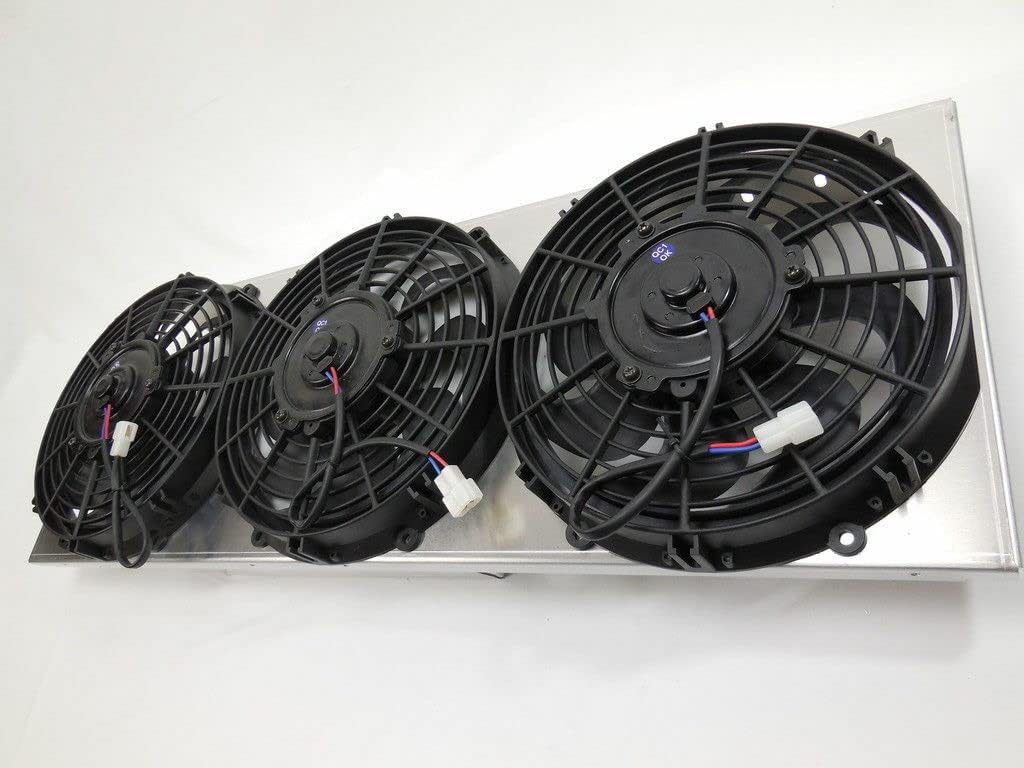

Aluminum Radiator+Shroud Fan+Relay Compatible with 1991-2001 Jeep Cherokee XJ Comanche AT/MT

This Listing Is Including: 1 X 1-Row Aluminum Radiator (Includes Radiator Cap) 1 X Aluminum Shroud 3 X 9inch Fans (Includes mounting kits) 1 X Thermostat Relay Kit RADIATOR SIZE: Core Size: 11.125inchH x 31inchW Overall Size: 13.5inchH x 36inchW Inlet Diameter: 1.25inch Outlet Diameter: 1.5inch Upper Hose Fitting: PASS Lower Hose Fitting: DRIVER Trans Cooler Details: 5/8-18 Straight Thread Mounting Type: PIN MOUNT OEM Style Brass Petcoke Drain CNC machined filler neck and cap Aircraft 5057 grade aluminum and with raw aluminum finish FAN SIZE: Maximum Fan CFM: 1730 cfm Fan Diameter (in): 9.050inch Thickness (in): 2.500inch Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. This set up will run Fans & pull air in through radiator. This Radiator Compatible with: 1991-2001 Jeep Cherokee 2.5L 4.0L 1991-1992 Jeep Comanche 4.0L 1991-2001 Jeep Cherokee XJ 6 Cylinder 1991-2001 Jeep Cherokee Comanche l4 l6 2.5 4.0 6 Cylinder

• [VEHICLE FITMENTS]- New Aftermarket Radiator Replacement for 1991-2001 Jeep Cherokee XJ Comanche 4.0L AT/MT. 1-YEAR WARRANTY and LIFETIME CUSTOMER SERVICE. US Local Stock
• [TESLA RADIATOR DIMENSIONS]- Core Size: 11.125''H x 31''W; Overall Size: 13.5''H x 36''W; Inlet OD: 1.25"; Outlet OD: 1.5" - PLEASE CHECK SPECIFICATIONS
• [DIRECT REPLACEMENT]- Brand new radiator. Direct OE replacement with drop-in precise fitment and easy installation. Stronger & higher capacity for coolant than stock one
• [PERFORMANCE]- This automotive performance aluminum radiators dramatically increases cooling efficiency by up to 40%~58%, essential for keeping your engine running at optimal temperatures, especially during heavy towing or in hot conditions
• [NO LEAKAGE WORRIES]- Perfect Drop-In Fit. 100% welded by TIG, No Epoxy. 100% pressure tested to prevent leakage. Thickened carton packaging with internal shock-absorbing design
