Baieyu Fanless Mini PC, 8GB RAM 256GB SSD Industrial PC, Core i5-8260U Windows 11 Pro Mini Computer with 2 RS232 COM, Support RS422/RS485, 2 HD, DP, 4K Triple Display, 2 RJ45 LAN, GPIO Port, WiFi 5
$508.50
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by v1.seanmas.com.au
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$508.50
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by v1.seanmas.com.au
Free 30-day returns Details
Product details
| Management number | 216081081 | Release Date | 2026/04/19 | List Price | $203.40 | Model Number | 216081081 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- ❤【15W TDP Powerful CPU】The Industrial PC equips with Intel Core i5-8260U processor (4 cores 8 threads, 6MB cache, up to 3.4GHz). Equipped with the 8th gen 14nm processor framework and 15W low-power TDP, the mini desktop PC is consuming energy and is more environmentally friendly. This Micro PC has a powerful CPU and supports 7/24 hours of operation. It allows you to easily deal with industrial production, entertainment, office and other scenarios.
- ❤【Pre-installed Windows 11 Pro】The Windows 11 Pro mini PC work efficiently. These fanless industrial computer are pre-installed with Windows 11 Pro. The industrial mini PC also support installing other systems, like Windows 10, Linux, Ubuntu, Debian, OPNsense, etc. This fanless mini PC also supports dual operating systems. For example, installing Windows and Linux. You can change it according to your own preferences.
- ❤【4K UHD Triple Display & High-speed Transmission】Equipped with UHD Graphics for 10th Gen Intel Processors, the mini PC fanless supports a 4K UHD triple-screen display and optimizes your working efficiency. Built-in 2.4G/5.0G dual band WiFi5, 1000Mbps LAN and 2 antennas, Baieyu industrial mini PC provides a stable network. BT 4.2 is available to connect computer peripherals—4 USB 3.0 ports offer 5Gbps high-speed data transmission.

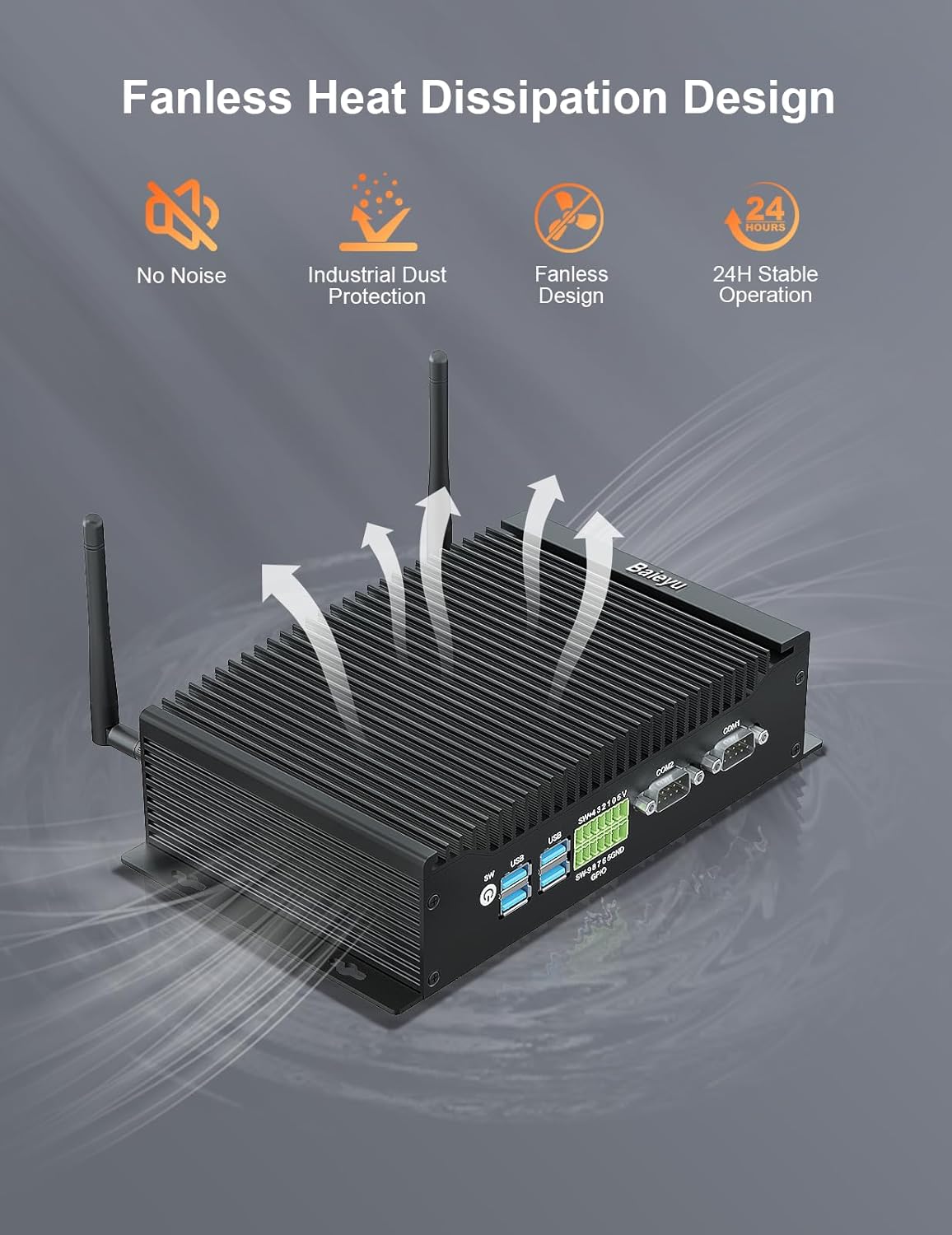

- ❤【Unique Design & Function 】Industrial PC with a VESA mount, you can hook your computer behind a monitor and turn it into a pseudo-all-in-one. The fanless design allows enjoying without noise. Its frame adopts a gird wave design, enlarging the heat dissipation surface. The fanless mini desktop PC supports Wake-On-LAN, PXE-Start, and Auto Power On. The Dual nic mini PC also has dual Gigabit Ethernet ports, so this PC can support the firewall function.
- ❤【Fanless Industrial PC】Package Contents: 1 × Fanless PC, 2 × WiFi Antenna, 1 × Power Adapter, 1 × User Manual, 1 × Mounting Bracket, Mini PC size 17.0 × 12.6 × 5.8cm(6.7 × 5.0 × 2.3inches), Net 1.1kg(2.4lb); Gross 1.9 kg(4.2lb), run 24/7.
| Brand | Baieyu |
|---|---|
| Color | Black |
| RAM Type | DDR4 SDRAM |
| Model Name | H6-i5-8260U |
| Model Year | 2017 |
| Resolution | 3840 x 2160 |
| Style Name | 8GB DDR4 256GB M.2 SSD |
| Item Weight | 1.2 Kilograms |
| Aspect Ratio | 16:9 |
| Display Type | LCD |
| Manufacturer | Baieyu |
| Memory Speed | 2400 MHz |
| Model Number | BAH6-i5-8260U |
| Video Output | DisplayPort |
| BuiltIn Media | 1 × Fanless PC, 2 × WiFi Antenna, 1 × Power Adapter, 1 × VESA Mounting Bracket |
| Cooling Method | Fanless |
| Item Dimensions | 8.07 x 4.92 x 2.09 inches |
| Keyboard Layout | QWERTY |
| Power Plug Type | Type A - 2 pin (North American) |
| Processor Brand | Intel |
| Processor Count | 4 |
| Processor Speed | 1.6 GHz |
| Total Usb Ports | 6 |
| Video Processor | Intel |
| CPU Model Number | Core i5-8260U |
| Operating System | Windows 11 Pro |
| Processor Series | Core i5-8260U |
| Processor Socket | Socket A |
| Graphics Ram Type | Shared |
| Native Resolution | 3840 x 2160 |
| Power Consumption | 15 Watts |
| Compatible Devices | Keyboard, Mouse, Monitor, USB Peripherals, Network Devices |
| Hardware Interface | DisplayPort, Ethernet, USB 3.0 |
| Memory Clock Speed | 2400 MHz |
| Additional Features | Mini pc |
| Hard Disk Interface | Solid State |
| Wireless Technology | Wi-Fi |
| Graphics Coprocessor | Intel UHD Graphics 620 |
| Graphics Description | Integrated |
| HumanInterface Input | Buttons |
| Keyboard Description | QWERTY layout |
| RAM Memory Installed | 8 GB |
| Wireless Compability | Bluetooth |
| Hard Disk Description | SSD |
| RAM Memory Technology | DDR4 |
| Memory Slots Available | 2 |
| Video Output Interface | HDMI, DisplayPort |
| CPU Model Speed Maximum | 3400 MHz |
| Connectivity Technology | Wi-Fi |
| Graphics Card Interface | Integrated |
| Memory Storage Capacity | 8 GB |
| Ram Memory Maximum Size | 64 GB |
| Total Thunderbolt Ports | 2 |
| Specific Uses For Product | Industry, Automation, Everyday Use |
| Display Resolution Maximum | 4K Ultra HD |
| Total Number of HDMI Ports | 2 |
| Cache Memory Installed Size | 6 MB |
| Number of Component Outputs | 3 |
| Wireless Network Technology | Wi-Fi |
| Personal Computer Design Type | Mini PC |
| Total Expansion Slots Quantity | 1 |
