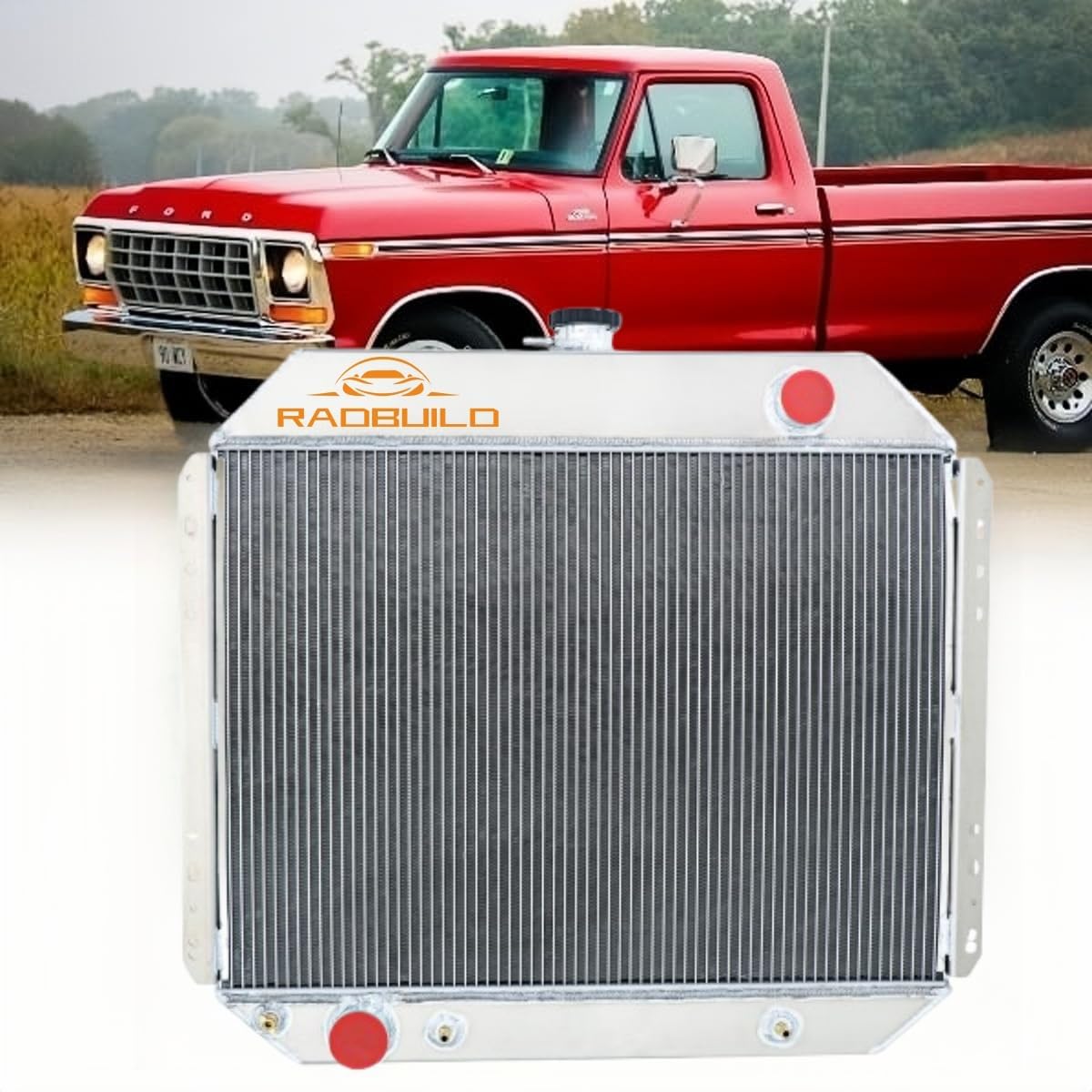

CU433 3 Row Aluminum Radiator for 1966-1979 Ford F100 F150 F250 F350 F500 Bronco Trucks V8 Radiador 68 69 70 71 72 73 74 75 76 77 78 Downflow Radiators Shroud 2x12" Fans Thermostat Relay Kit

FitmentFor 1966-1979 Ford F-Series/Bronco Truck V8For Ford Bronco 1978-1979 (351ci V8, 400ci V8) For Ford F-Series Truck 1968-1969 (4.9L Straight 6-cylinder, 360ci V8, 390ci V8) For Ford F-Series Truck 1970-1972 (360ci V8, 390ci V8) For Ford F-Series Truck 1973-1975 (302ci V8, 360ci V8, 390ci V8) For Ford F-Series Truck 1976 (302ci V8, 351ci V8) For Ford F-Series Truck 1977-1979 (302ci V8, 351ci V8, 400ci V8)Part NumberManufacturer Part Number: 433, SBR433, CC433, CU433, DPI433, DPI132, CU132Interchange Part Number: CC433, EC433, AE433, MC433Package Include:1 x 3-Row AA5052 Aluminum Radiator1 x CNC Machined Radiator Cap1 x AA5052 Aluminum Shroud2 x 12" Fans (Includes mounting kits)1 x Thermostat Relay KitRadiator DetailsRow Count: 3 RowCore Size: 18.9"H x 25.91"W x 1.73"TOverall Size: 29.53"L x 26.18"W x 6.50"HInlet/Outlet: 1.77"/1.97"Transmission oilcooler: φ26*305*1/8-27NPT(T)Fitment Type: Direct ReplacementSurface Finish: Aircraft Grade Raw Aluminum Tank & CorePetcoke Drain: OEM Style Brass Petcoke DrainRadiator Cap: CNC Machined Filler Neck And CapFans SizeMaximum Fan CFM: 2300±200 cfmFan Diameter (in): 12.050" Thickness (in): 2.500" Number of Blades: 10 bladesMaximum Fan RPM: 2,250 rpmBlade Material: PlasticAmp Draw: 12.70 ampsRelay Kit Instructions:RED + connect directly to battery.WHITE wire to ignition switch power source.BLACK goes to thermos switch.BLUE wire goes to the Fans.Thermostat Relay Kit:Universal fit for any automotive vehicle and electric fan.Activates by grounding electric fans at preset temperature.180'F turn-on temperature, 165'F turn-off temperature.3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.Probe typically threads into radiator, water outlet or manifold.

• Aluminum Radiator for Ford F-Series F100 F150 F250 F350 F500 Bronco Trucks V8 1966-1979, 1967 1968 1969 1970 1971 1972 1973 1974 1975 1976 1977 1978 1979 66 67 68 69 70 71 72 73 74 75 76 77 78 79
• Core Size: 18.9" H x 25.91" W x 1.73" T; Overall Size: 29.53" L x 26.18" W x 6.50" H; Inlet/Outlet: 1.77"/1.97"; Transmission oilcooler: φ26*305*1/8-27NPT(T); Part Number: 433, SBR433, CC433, CU433, DPI433, EC433, AE433, MC433, DPI132, CU132
• High Performance. Full AA5052 Aircraft Aluminum craftsmanship radiator & exclusive tube design that dramatically increases cooling efficiency by up to 30%~45%, strong and durable, 100% welded by TIG, No Epoxy. 100% Leak Tested
• Easy to Install. Meticulously built to superior OE standards a precise fit, direct bolt-on replacement. No Drilling or Modifications Needed Installation. Please contact us if you need additional installation instructions
• Crafted by our professional team using the highest-grade materials for exceptional longevity. Any problem, such as quality problems (leaking)/damaged/not received, please contact us via email first
