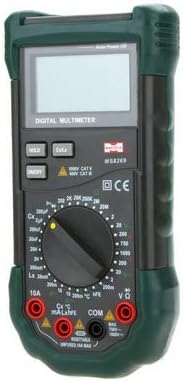

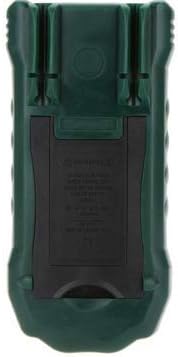

Digital LCR Meter Resistance CapacitanceTemperature Tester
Product details
| Management number | 210911053 | Release Date | 2026/04/04 | List Price | $41.20 | Model Number | 210911053 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Features: Large 2000 Counts LCD Display Tests AC/DC Voltage and Current, Resistance, Frequency and Capacitance Transistor (hFE) Check, Diode and Continuity Test Inductance measurement up to 20H Type K thermocouple contact temperature measurement Data Hold and Display Back Light Safety Rating up to CAT.II 1000V / CAT.III 600V Continuity test & Diode Test Specification: DC voltage: 200m/2V/20V/200V ± 0.5%, 1000V ± 0.8% AC voltage: 2V/20V/200V ± 0.8%, 750V ± 1.2% Resistance: 200/2k/20k/200k/2MΩ ± 0.8%, 20MΩ ± 1.0% DC current: 200mA ± 1.5%, 10A ± 2.0% AC current: 200mA ± 1.8%, 10A ± 3.0% Capacitance: 20n/200n/2μ/20μF/200μF ± 4.0% Temperature: -20 ° C ~ 1000 ° C Inductance: 20mH/200mH/2H/20H ± 3.0% Transistor hFE: 1 ~ 1000 Specifications: Power supply: 1 * 6F22 (9V) (not included) Dimensions: 195 * 92 * 55mm Package Size: 24 * 17 * 6.5cm / 9.6 * 6.6 * 2.6in Package Weight: 585g / 1.3lb Package List: 1 * Handheld Digital Multimeter 1 * Pair Test Lead 1 * Temperature Probe 1 * Multi-function Socket 1 * English Manual
- Large 2000 Counts LCD Display
- Tests AC/DC Voltage and Current, Resistance, Frequency and Capacitance Transistor (hFE) Check, Diode and Continuity Test
- Inductance measurement up to 20H
- Type K thermocouple contact temperature measurement
- Data Hold and Display Back Light
| Model | KG-631 |
|---|---|
| Brand Name | KingGo |
| Style Name | Digital |
| Item Weight | 0.6 Kilograms |
| Manufacturer | KingGo Electronics |
| Power Source | Battery Powered |
| Item Dimensions | 4.72 x 3.94 x 3.15 inches |
| Measurement Type | LCR Meter, Multimeter |
